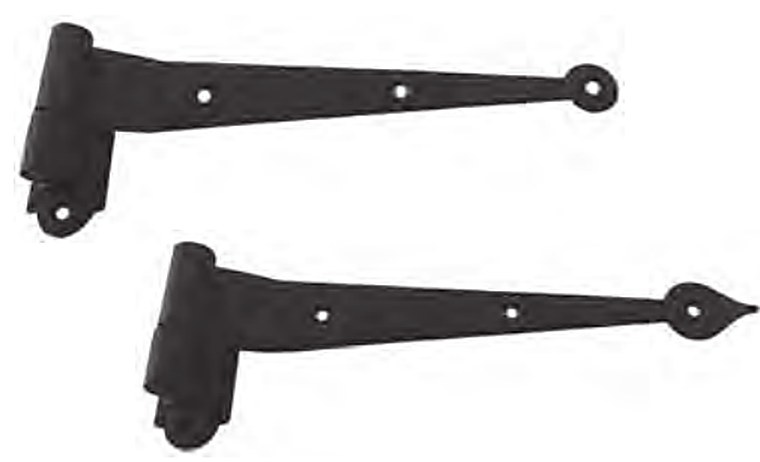

About the 9 1/4" Spade Strap Hinge
The 9 1/4" strap with a spade tip, for smaller shutters. Sold individually; order two for each shutter.
John Wright strap hinges pair a forged steel strap with a cast iron pintle and a black powder coat. The pintle offset sets how far the shutter stands off the wall when closed, which is what lets it clear trim and brick mould.
Choosing the offset
Offset is the distance from the mounting surface to the center of the pin. The hinge offset plus the pintle offset must clear any trim, brick mould or siding between the shutter and the wall so the shutter closes flat.
- Flat trim or none: a flat or small-offset hinge on a 3/4" pintle is usually enough.
- Brick mould or thick casing: step up to 1 3/4" or 2 1/4", or use a brick-mount pintle.
- Deep reveals or stone: the longest offsets or an adjustable lag pintle.
Not sure? Call 1-888-778-4774 with a photo of your trim and we will help you match hinges and pintles.
Specifications
| Brand | John Wright |
|---|---|
| Size | 13 3/4" x 3 1/2" x 2" with pintle |
| Includes | 1 hinge, 1" offset pintle, screws |
| Finish | Primer and black powder coat |
| Fits | John Wright strap hinge pintles |
| Sold as | Forged strap with pintle, sold individually |
All Sizes & Prices
| Item # | Offset | Your price |
|---|---|---|
088650 | 1" offset | $15.00 |
088653 | No offset | $15.00 |
Prices are per each. Shipping is calculated in your cart.
Questions
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
Do you offer contractor pricing?
Yes. Contractors and installers ordering hardware for several homes can call 1-888-778-4774 or see our contractor sales page.
