About the Special Purpose Hinges & Pintle
Problem-solving pieces for brick and block: a hinge that can also serve as a pintle, a matching pintle, and a small non-handed mid-range hinge with a removable pin.
John Wright strap hinges pair a forged steel strap with a cast iron pintle and a black powder coat. The pintle offset sets how far the shutter stands off the wall when closed, which is what lets it clear trim and brick mould.
Choosing the offset
Offset is the distance from the mounting surface to the center of the pin. The hinge offset plus the pintle offset must clear any trim, brick mould or siding between the shutter and the wall so the shutter closes flat.
- Flat trim or none: a flat or small-offset hinge on a 3/4" pintle is usually enough.
- Brick mould or thick casing: step up to 1 3/4" or 2 1/4", or use a brick-mount pintle.
- Deep reveals or stone: the longest offsets or an adjustable lag pintle.
Not sure? Call 1-888-778-4774 with a photo of your trim and we will help you match hinges and pintles.
Specifications
| Brand | John Wright |
|---|---|
| Hinge | 7" x 1" x 1 1/2"; works as a hinge or a pintle |

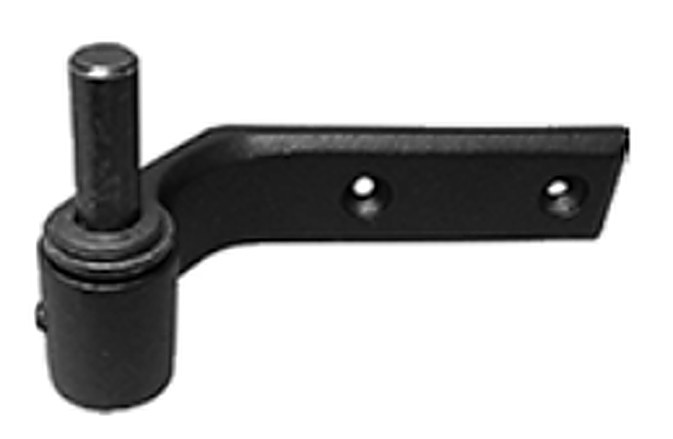

| Pintle | 4 1/4" x 1", 1 1/2" offset, for brick or block |
| Mini mid-range | 2" x 2", removable pin, non-handed, 1" offset |
| Fits | John Wright strap hinge pintles |
| Sold as | Cast iron, sold individually |
All Sizes & Prices
| Item # | Type | Your price |
|---|---|---|
088521 | Special purpose hinge, 1" offset | $25.00 |
088531 | No-offset special purpose hinge | $25.00 |
088522 | Special purpose pintle, 1 1/2" offset | $14.50 |
088533 | Mini mid-range hinge, 1" offset | $12.50 |
Prices are per each. Shipping is calculated in your cart.
Questions
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
Do you offer contractor pricing?
Yes. Contractors and installers ordering hardware for several homes can call 1-888-778-4774 or see our contractor sales page.
