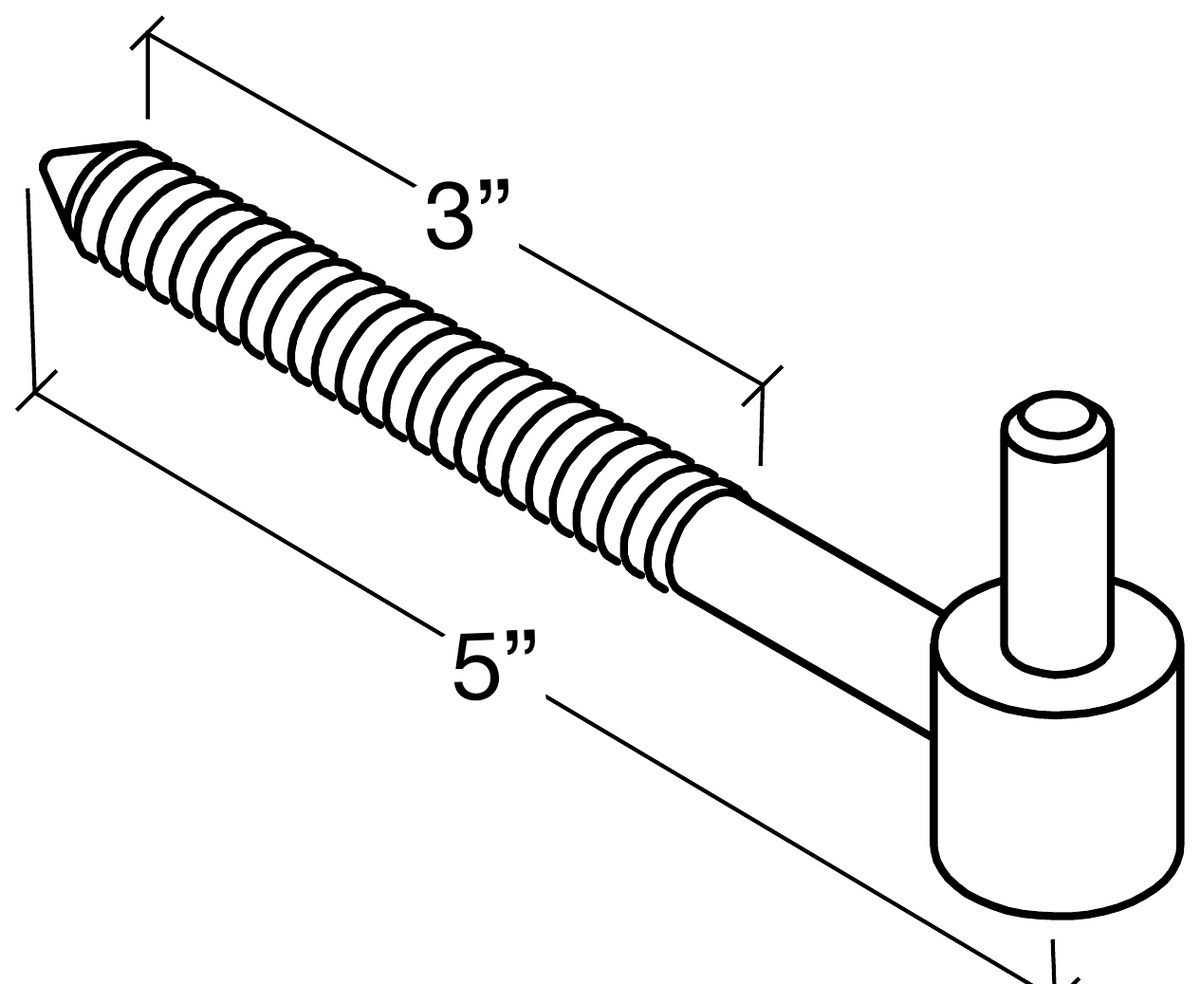

Dimension drawings are in the thumbnails.
About the New York Lag Pintle
For masonry or solid framing, the New York lag pintle drives straight into the wall. Set the offset by how far you drive it.
Lynn Cove's New York style is a lighter, lower-profile colonial hinge system built around a 3/8" pin. It is made in galvanized steel with a black powder coat, and every New York hinge fits every New York pintle, so you can mix mounting styles on the same house.
Choosing the offset
Offset is the distance from the mounting surface to the center of the pin. The hinge offset plus the pintle offset must clear any trim, brick mould or siding between the shutter and the wall so the shutter closes flat.
- Flat trim or none: a flat or small-offset hinge on a 3/4" pintle is usually enough.
- Brick mould or thick casing: step up to 1 3/4" or 2 1/4", or use a brick-mount pintle.
- Deep reveals or stone: the longest offsets or an adjustable lag pintle.
Not sure? Call 1-888-778-4774 with a photo of your trim and we will help you match hinges and pintles.
Specifications
| Brand | Lynn Cove Foundry & Forge |
|---|---|
| Style | New York (3/8" pin) |
| Pin | 3/8" diameter pin |
| Overall length | 5" with 3" of lag thread |
| Offset | Adjustable |
| Finish | Black powder coat |
| Fits | All Lynn Cove New York style hinges and pintles |
| Sold as | 3/8" pin, lag thread, sold as a pair |
Goes With This
Lynn Cove
New York 'L' Hinge
Fits New York pintles · flat, 1 1/4" or 2 1/4" offset
Lynn Cove
New York Strap Hinge
8" strap · flat, 1 1/4" or 2 1/4" offset
Lynn Cove
Masonry Anchors & Screws
Lag shield anchors and concrete screws for brick and stone
Questions
Which hinges and pintles does it work with?
Any Lynn Cove New York style hinge or pintle (3/8" pin). It will not fit Lynn Cove Suffolk hardware (1/2" pin) or John Wright cast iron New York hardware (7/16" pin).
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
Do you offer contractor pricing?
Yes. Contractors and installers ordering hardware for several homes can call 1-888-778-4774 or see our contractor sales page.
