About the ACME, Lull & Porter Shutter Hinges

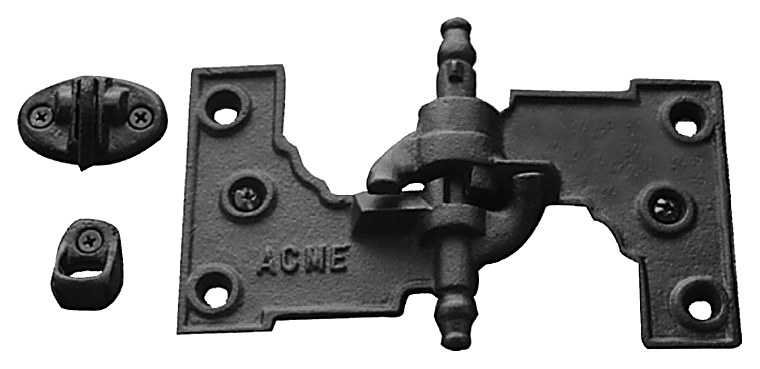

The once-patented ACME, Lull & Porter hinge is mortised into the edge of the shutter and the window casing, and it is designed so the wind cannot lift the shutter off. Choose it when enough wood trim is exposed at the window; choose a Clark's Tip surface hinge when it is not. Size by the throw you need: the distance the shutter must clear from the casing.
John Wright has cast traditional hardware in Lancaster County, Pennsylvania, since 1880. Raw cast iron pieces must be primed and painted before installation; WeatherWright powder-coated pieces arrive finished in black.
Specifications
| Brand | John Wright |
|---|---|
| Includes | 2 left + 2 right hinges and 2 sets of fasteners (one window) |
| Screws | Not included; order the matching ACME screw set |
| Throw from casing | #3 1 3/8", #2 1/2 2", #2 2 3/4", #1 1/2 3 1/8", #1 3 5/8", #0 4 1/4", #00 6 1/4" |
| Finish | Raw cast iron (prime and paint before installing) or WeatherWright black powder coat |
| Sold as | Cast iron mortise hinges, set for one window |
All Sizes & Prices
| Item # | Size | Finish | Your price |
|---|---|---|---|
88-372 | #3 (3 1/8" open) | Raw iron | $28.00 |
88-372PC | #3 (3 1/8" open) | Powder coated | $35.00 |
88-373 | #2 1/2 (3 3/4" open) | Raw iron | $29.50 |
88-373PC | #2 1/2 (3 3/4" open) | Powder coated | $37.00 |
88-374 | #2 (4 1/2" open) | Raw iron | $34.00 |
88-374PC | #2 (4 1/2" open) | Powder coated | $44.50 |
88-375 | #1 1/2 (5" open) | Raw iron | $36.00 |
88-375PC | #1 1/2 (5" open) | Powder coated | $47.00 |
88-376 | #1 (5 1/2" open) | Raw iron | $40.00 |
88-376PC | #1 (5 1/2" open) | Powder coated | $52.00 |
88-377 | #0 (6 1/2" open) | Raw iron | $52.50 |
88-377PC | #0 (6 1/2" open) | Powder coated | $66.50 |
88-378 | #00 (9" open) | Raw iron | $74.00 |
88-378PC | #00 (9" open) | Powder coated | $112.00 |
Prices are per set. Shipping is calculated in your cart.
Goes With This
Questions
Which size do I need?
Measure how far the shutter has to swing out to clear the casing and sill (the throw), then pick the size whose throw from casing is at least that much. The size chart is in the specifications.
Are screws included?
No. Order ACME screw set 88-370 for sizes #3 to #1, or 88-371 for #0 and #00.
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
Do you offer contractor pricing?
Yes. Contractors and installers ordering hardware for several homes can call 1-888-778-4774 or see our contractor sales page.
