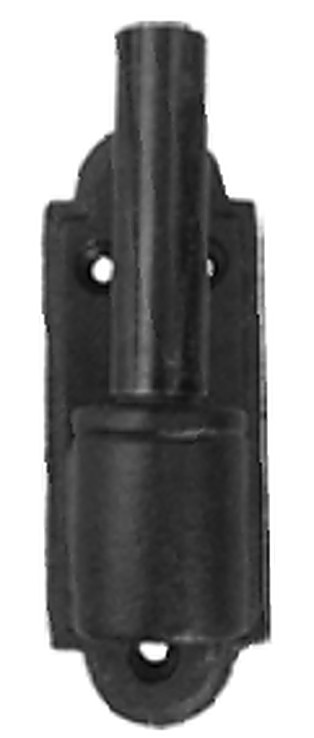

About the Cast Iron New York Pintles
Replacement or add-on pintles for John Wright cast iron New York hinges and mid-range hinges. The 4" offset is extra long and strong for stone.
John Wright's New York style hardware is heavy cast iron with a textured black powder coat and slotted screws, the way the originals were made. The hinges lift off their 7/16" pins for painting and removal, and the line uses its own pin size, so pair it with John Wright pintles and hinges only.
Choosing the offset
Offset is the distance from the mounting surface to the center of the pin. The hinge offset plus the pintle offset must clear any trim, brick mould or siding between the shutter and the wall so the shutter closes flat.
- Flat trim or none: a flat or small-offset hinge on a 3/4" pintle is usually enough.
- Brick mould or thick casing: step up to 1 3/4" or 2 1/4", or use a brick-mount pintle.
- Deep reveals or stone: the longest offsets or an adjustable lag pintle.
Not sure? Call 1-888-778-4774 with a photo of your trim and we will help you match hinges and pintles.
Specifications
| Brand | John Wright |
|---|---|
| Style | Cast Iron New York (7/16" pin) |
| Pin | 7/16" diameter pin |
| Pin | 7/16" diameter x 1 5/8" tall |
| Plate | 3 3/8" x 1 1/4", 1/4" thick |
| Sold as | Set of 4 with screws |
| Fits | John Wright cast iron New York style hinges and pintles |
All Sizes & Prices
| Item # | Offset | Your price |
|---|---|---|
088-538 | 3/4" | $19.00 |
88-518 | 1 1/2" | $20.00 |
88-527 | 1 7/8" | $20.00 |
888-519 | 2 1/4" | $22.00 |
888-523 | 4" | $89.00 |
Prices are per set. Shipping is calculated in your cart.
Goes With This
John Wright
Cast Iron New York Hinge & Pintle Sets
Cast iron · 4 hinges + 4 pintles · four offsets or stainless
John Wright
Cast Iron New York Hinges (No Pintles)
Cast iron · 2 left + 2 right · pintles not included
John Wright
Mid-Range New York Hinge
Cast iron center hinge · includes 2 pintles · four offsets
Questions
Which hinges and pintles does it work with?
John Wright cast iron New York style hinges and pintles, which share a 7/16" pin. Lynn Cove New York (3/8") and Suffolk (1/2") hardware use different pins.
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
Do you offer contractor pricing?
Yes. Contractors and installers ordering hardware for several homes can call 1-888-778-4774 or see our contractor sales page.
