About the Cast Iron New York Hinge & Pintle Sets

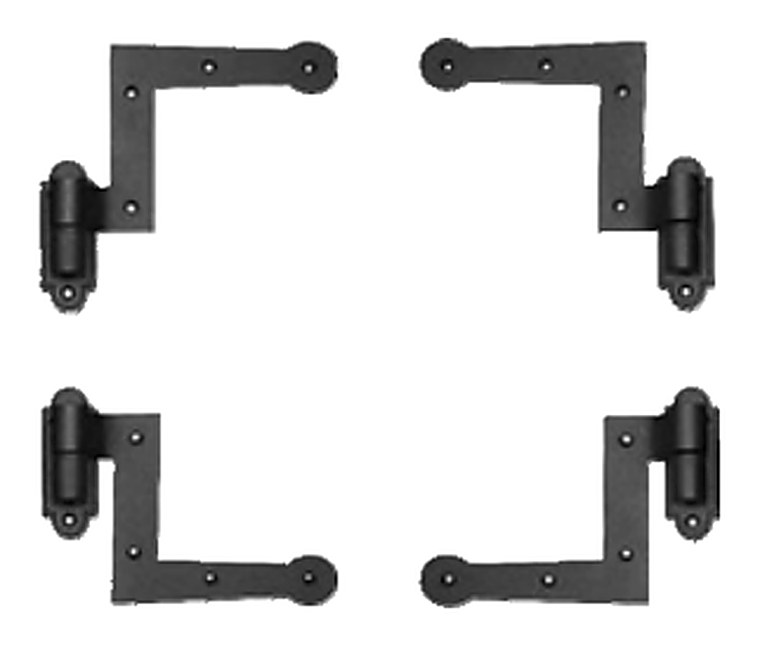

Everything to hang one pair of shutters: four heavy cast iron New York hinges, almost 1/4" thick, and four pintles with the same offset. The hinges lift off the pins for painting. The no-offset set is designed for new construction.
John Wright's New York style hardware is heavy cast iron with a textured black powder coat and slotted screws, the way the originals were made. The hinges lift off their 7/16" pins for painting and removal, and the line uses its own pin size, so pair it with John Wright pintles and hinges only.
Choosing the offset
Offset is the distance from the mounting surface to the center of the pin. The hinge offset plus the pintle offset must clear any trim, brick mould or siding between the shutter and the wall so the shutter closes flat.
- Flat trim or none: a flat or small-offset hinge on a 3/4" pintle is usually enough.
- Brick mould or thick casing: step up to 1 3/4" or 2 1/4", or use a brick-mount pintle.
- Deep reveals or stone: the longest offsets or an adjustable lag pintle.
Not sure? Call 1-888-778-4774 with a photo of your trim and we will help you match hinges and pintles.
Specifications
| Brand | John Wright |
|---|---|
| Style | Cast Iron New York (7/16" pin) |
| Pin | 7/16" diameter pin |
| Includes | 2 left + 2 right hinges, 4 pintles, matching slotted screws |
| Offsets | No offset (new construction), 3/4", 1 1/2", 2 1/4" |
| Sizes | No offset: 6 3/4" x 5" x 2 3/8"; 3/4": 6 3/4" x 5" x 1 7/8"; 1 1/2": 6 3/4" x 5" x 2"; 2 1/4": 6 3/4" x 5" x 2 3/4" |
| Material | Cast iron, textured black powder coat; stainless steel with smooth finish |
| Fits | John Wright cast iron New York style hinges and pintles |
| Sold as | Cast iron set for one window |
All Sizes & Prices
| Item # | Offset | Material | Your price |
|---|---|---|---|
088-514 | No offset | Cast Iron | $63.50 |
088-535 | 3/4" | Cast Iron | $63.50 |
88-510 | 1 1/2" | Cast Iron | $58.50 |
88-512 | 2 1/4" | Cast Iron | $63.50 |
088-514SS | No offset | Stainless Steel | $101.50 |
088536SS | 3/4" | Stainless Steel | $109.50 |
Prices are per set. Shipping is calculated in your cart.
Goes With This
John Wright
Mid-Range New York Hinge
Cast iron center hinge · includes 2 pintles · four offsets
John Wright
Cast Iron New York Pintles
7/16" pin · set of 4 · 3/4" to 4" offsets · cast iron
John Wright
Cast Iron New York Pintle Shims
1/4" thick · set of 3 with screws
Questions
Which offset do I need?
The offset has to clear any trim between the shutter and the wall. The no-offset set suits new construction with little or no trim; step up to 1 1/2" or 2 1/4" for brick mould and thicker casings.
Which hinges and pintles does it work with?
John Wright cast iron New York style hinges and pintles, which share a 7/16" pin. Lynn Cove New York (3/8") and Suffolk (1/2") hardware use different pins.
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
Do you offer contractor pricing?
Yes. Contractors and installers ordering hardware for several homes can call 1-888-778-4774 or see our contractor sales page.
