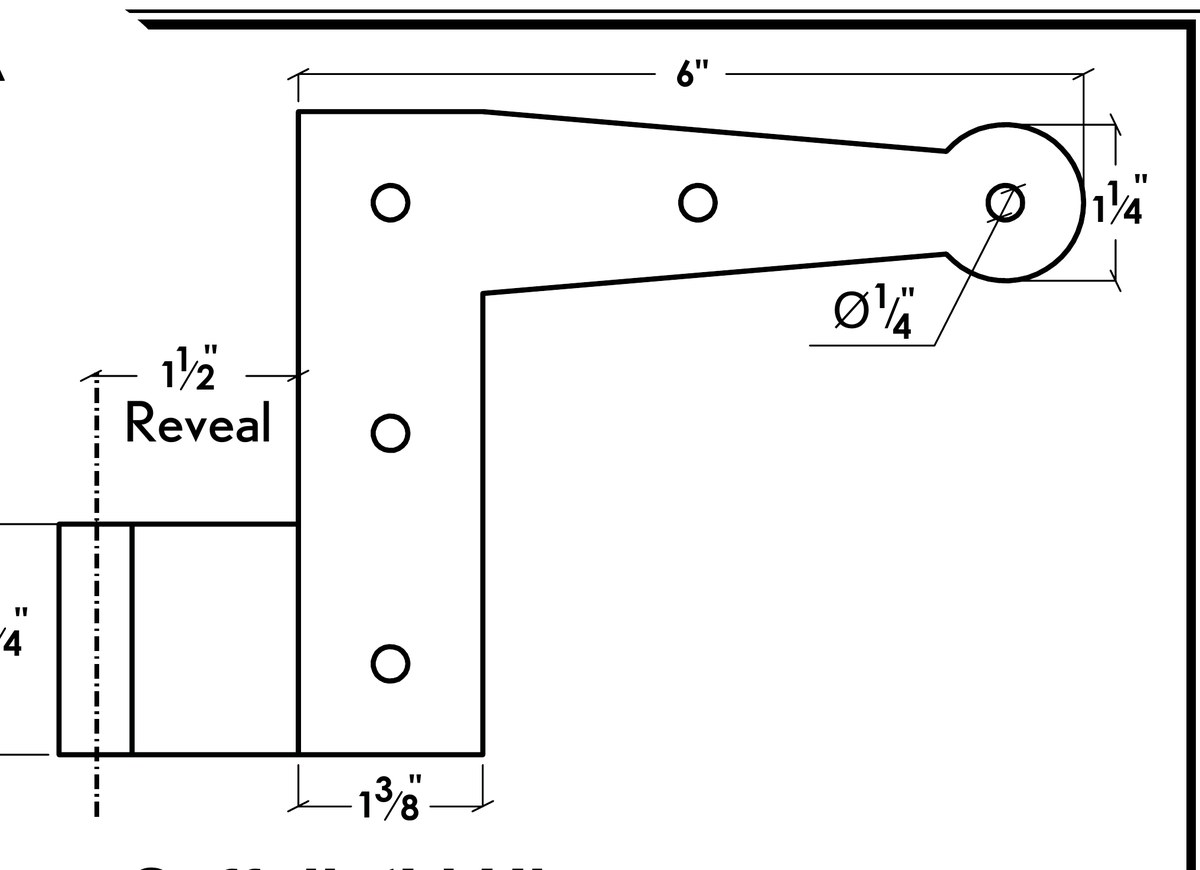

Dimension drawings are in the thumbnails.
About the Suffolk 'L' Hinge
The 'L' hinge is the classic shutter hinge: one leg runs along the top or bottom rail and the other up the stile, so it is strong enough for full-size working shutters. The hinge offset combines with the pintle offset to set how far the shutter stands off the wall.
Suffolk is Lynn Cove's heavier colonial style. Every Suffolk hinge and pintle shares a 1/2" pin, so any Suffolk hinge drops onto any Suffolk pintle, and a matched hinge pair supports up to 75 lb. Pieces are galvanized or 18-8 stainless steel under a black powder coat, and Lynn Cove ships them with stainless wood screws.
Choosing the offset
Offset is the distance from the mounting surface to the center of the pin. The hinge offset plus the pintle offset must clear any trim, brick mould or siding between the shutter and the wall so the shutter closes flat.
- Flat trim or none: a flat or small-offset hinge on a 3/4" pintle is usually enough.
- Brick mould or thick casing: step up to 1 3/4" or 2 1/4", or use a brick-mount pintle.
- Deep reveals or stone: the longest offsets or an adjustable lag pintle.
Not sure? Call 1-888-778-4774 with a photo of your trim and we will help you match hinges and pintles.
Specifications
| Brand | Lynn Cove Foundry & Forge |
|---|---|
| Style | Suffolk (1/2" pin) |
| Pin | 1/2" diameter pin, 1 3/4" tall |
| Legs | 6" horizontal leg, 1 1/2" reveal |
| Offsets | Flat, 1/2", 3/4", 1 3/4", 2 1/4" |
| Sold as | Pair (1 left + 1 right) |
| Material | Galvanized Steel or Stainless Steel |
| Finish | Black powder coat |
| Fits | All Lynn Cove Suffolk hinges and pintles |
All Sizes & Prices
| Item # | Material | Offset | List | Your price |
|---|---|---|---|---|
EHLR000 | Galvanized Steel | Flat | $45.00 | $33.75 |
EHLR050 | Galvanized Steel | 1/2" | $46.00 | $34.50 |
EHLR075 | Galvanized Steel | 3/4" | $47.00 | $35.25 |
EHLR175 | Galvanized Steel | 1 3/4" | $48.00 | $36.00 |
EHLR225 | Galvanized Steel | 2 1/4" | $49.00 | $36.75 |
EHLSS000 | Stainless Steel | Flat | $65.00 | $48.75 |
EHLSS050 | Stainless Steel | 1/2" | $66.00 | $49.50 |
EHLSS075 | Stainless Steel | 3/4" | $67.00 | $50.25 |
EHLSS175 | Stainless Steel | 1 3/4" | $73.00 | $54.75 |
EHLSS225 | Stainless Steel | 2 1/4" | $74.00 | $55.50 |
Prices are per pair. Shipping is calculated in your cart.
Goes With This
Lynn Cove
Suffolk Rounded Pintle
1/2" pin · 3/4" to 3 1/4" offsets · galvanized or stainless
Lynn Cove

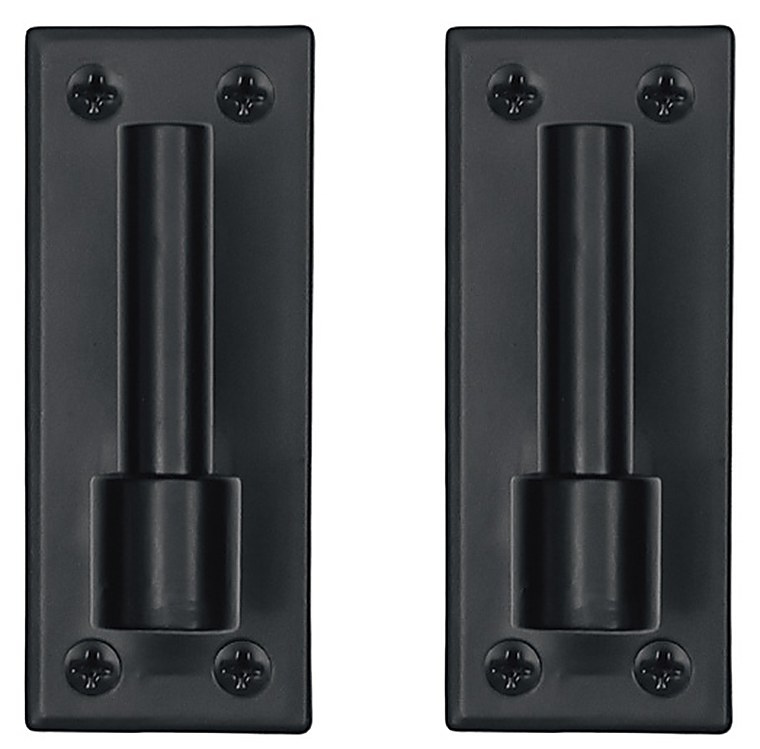

Suffolk Traditional Pintle
1/2" pin · rectangular plate · 3/4" to 3 1/4" offsets · stainless
Lynn Cove
Suffolk Center Hinge
Mid-rail hinge · flat to 2 1/4" offset · 5 5/8" tall
Lynn Cove
Suffolk 'L' Hinge Set
Hinges + pintles for 2 shutters · surface, flush, brick, lag or jamb mount
Questions
How many do I need?
Most shutters take two hinges, so a window with two shutters needs two pairs of hinges and two pairs of pintles.
Which hinges and pintles does it work with?
Any Lynn Cove Suffolk-style hinge or pintle. The whole Suffolk line shares a 1/2" pin. New York style hardware uses a smaller 3/8" pin and will not fit.
Galvanized or stainless steel?
Lynn Cove recommends galvanized steel for homes at least 20 miles from the coast and stainless steel for coastal homes and storm shutters. Both carry the same black powder coat.
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
