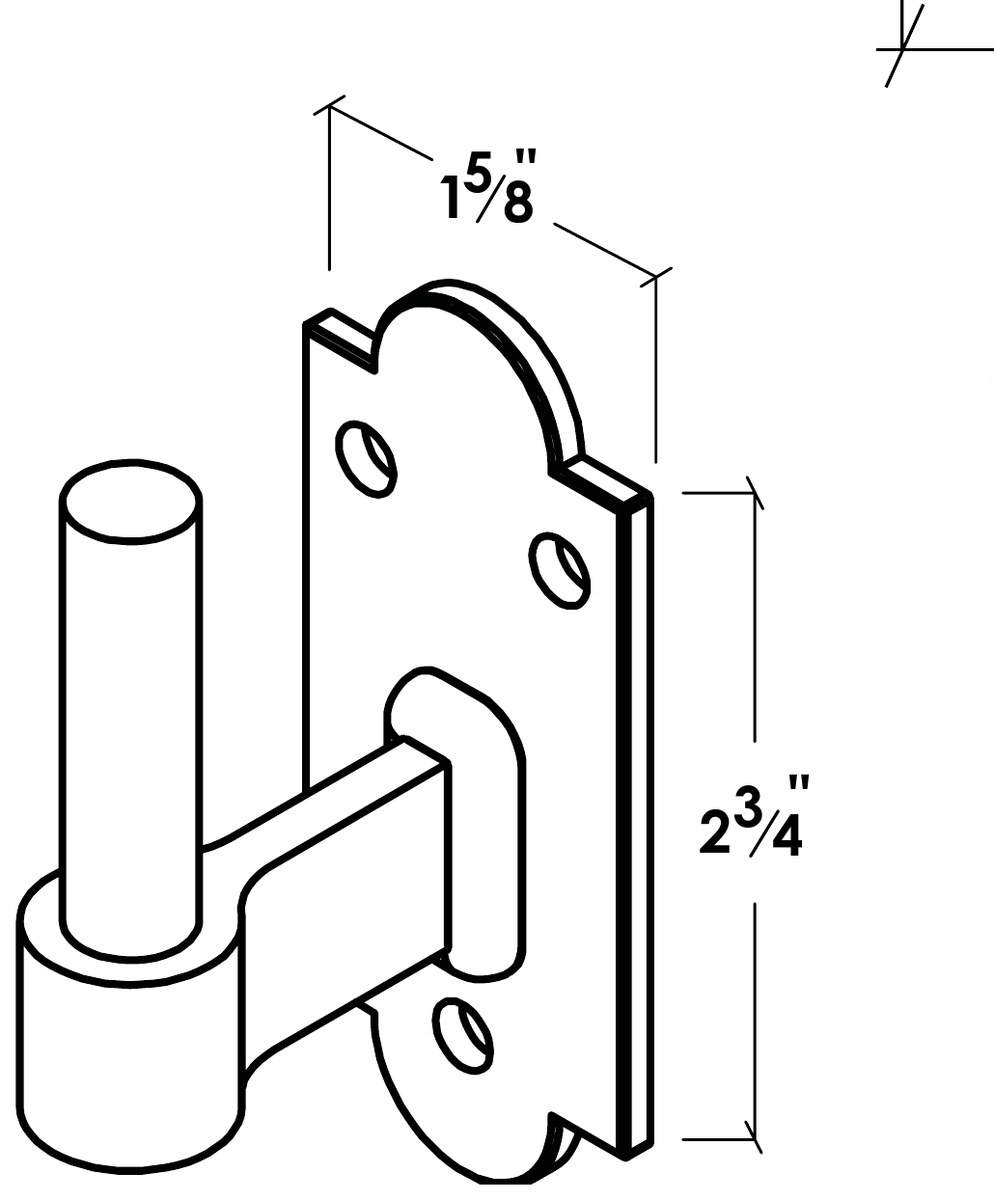

Dimension drawings are in the thumbnails.
About the Suffolk Rounded Pintle
The rounded pintle is the everyday workhorse of the Suffolk line: a compact plate with softened corners that screws flat to window casing or trim and carries the pin. Drop any Suffolk hinge over the pin and the shutter swings, lifts off for painting, and closes flat. The 3 1/4" offset is made in stainless steel only.
Suffolk is Lynn Cove's heavier colonial style. Every Suffolk hinge and pintle shares a 1/2" pin, so any Suffolk hinge drops onto any Suffolk pintle, and a matched hinge pair supports up to 75 lb. Pieces are galvanized or 18-8 stainless steel under a black powder coat, and Lynn Cove ships them with stainless wood screws.
Choosing the offset
Offset is the distance from the mounting surface to the center of the pin. The hinge offset plus the pintle offset must clear any trim, brick mould or siding between the shutter and the wall so the shutter closes flat.
- Flat trim or none: a flat or small-offset hinge on a 3/4" pintle is usually enough.
- Brick mould or thick casing: step up to 1 3/4" or 2 1/4", or use a brick-mount pintle.
- Deep reveals or stone: the longest offsets or an adjustable lag pintle.
Not sure? Call 1-888-778-4774 with a photo of your trim and we will help you match hinges and pintles.
Specifications
| Brand | Lynn Cove Foundry & Forge |
|---|---|
| Style | Suffolk (1/2" pin) |
| Pin | 1/2" diameter pin, 1 3/4" tall |
| Mounting plate | 1 5/8" wide x 2 3/4" tall, rounded ends |
| Offsets | 3/4", 1 3/4", 2 1/4" (3 1/4" stainless only) |
| Material | Galvanized Steel or Stainless Steel |
| Finish | Black powder coat |
| Fits | All Lynn Cove Suffolk hinges and pintles |
| Sold as | 1/2" pin, rounded plate, sold as a pair |
All Sizes & Prices
| Item # | Material | Offset | List | Your price |
|---|---|---|---|---|
EHPR075 | Galvanized Steel | 3/4" | $29.00 | $21.75 |
EHPR175 | Galvanized Steel | 1 3/4" | $31.00 | $23.25 |
EHPR225 | Galvanized Steel | 2 1/4" | $34.00 | $25.50 |
EHPSS075 | Stainless Steel | 3/4" | $61.00 | $45.75 |
EHPSS175 | Stainless Steel | 1 3/4" | $65.00 | $48.75 |
EHPSS225 | Stainless Steel | 2 1/4" | $67.00 | $50.25 |
EHPSS325 | Stainless Steel | 3 1/4" | $68.00 | $51.00 |
Prices are per pair. Shipping is calculated in your cart.
Goes With This
Lynn Cove
Suffolk 'L' Hinge
Fits Suffolk pintles · flat to 2 1/4" offset · 6" leg
Lynn Cove
Suffolk Center Hinge
Mid-rail hinge · flat to 2 1/4" offset · 5 5/8" tall
Lynn Cove
Suffolk Strap Hinge
10" tapered strap · flat to 2 1/4" offset
Lynn Cove
Suffolk Pintle Shims
1/4" nylon build-out for Rounded, Narrow and Traditional pintles
Questions
Why is the 3 1/4" offset only in stainless?
Lynn Cove makes the longest offset in stainless steel only. If you need that reach in galvanized steel, the adjustable Suffolk Lag Pintle is an alternative.
What does the nylon shim do?
A 1/4" nylon shim behind the plate adds a quarter inch of offset and helps the plate sit flat on uneven trim. Order them separately as Suffolk Pintle Shims.
Which hinges and pintles does it work with?
Any Lynn Cove Suffolk-style hinge or pintle. The whole Suffolk line shares a 1/2" pin. New York style hardware uses a smaller 3/8" pin and will not fit.
Galvanized or stainless steel?
Lynn Cove recommends galvanized steel for homes at least 20 miles from the coast and stainless steel for coastal homes and storm shutters. Both carry the same black powder coat.
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
