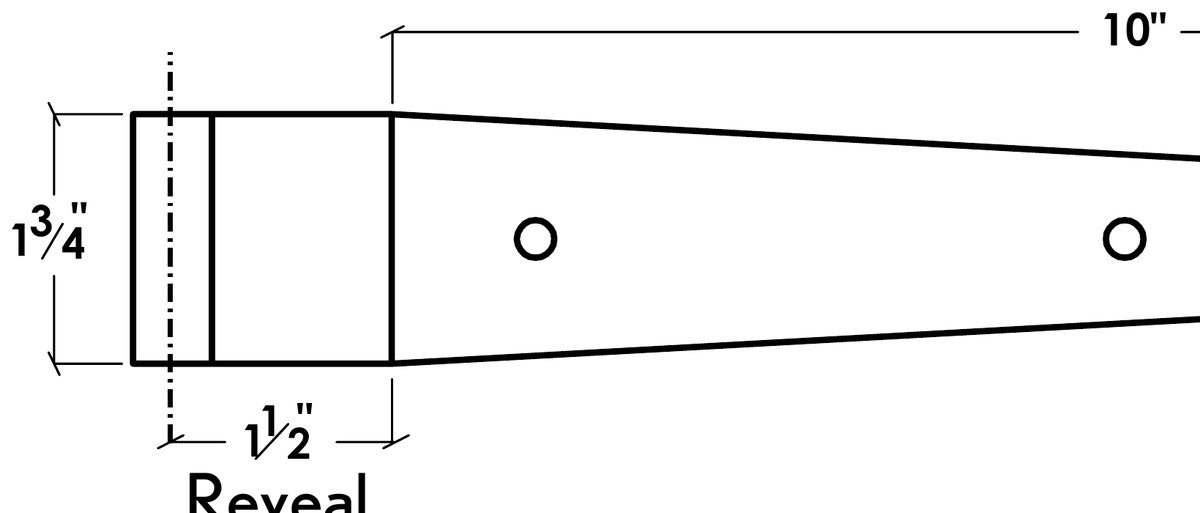

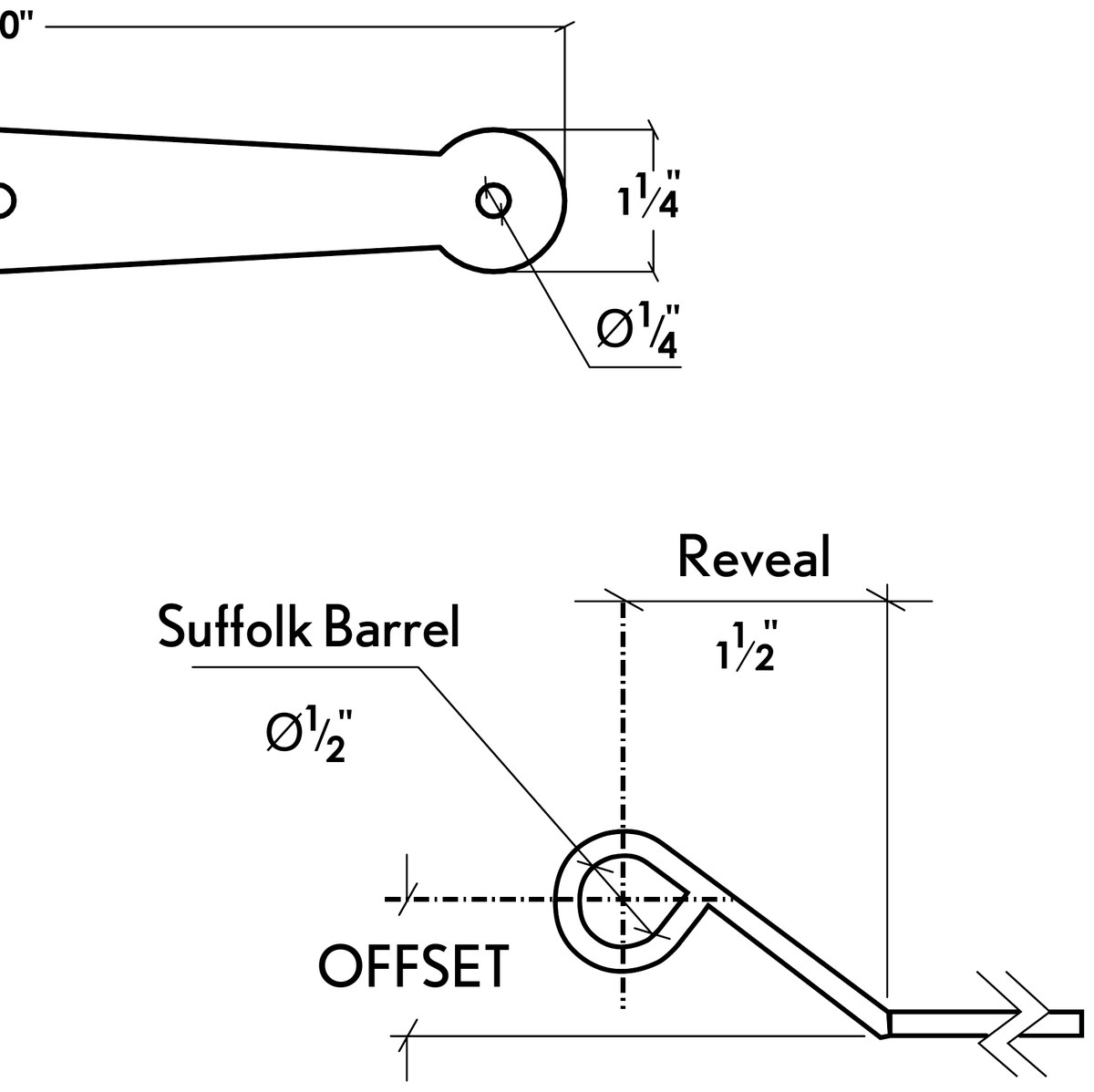

Dimension drawings are in the thumbnails.
About the Suffolk Strap Hinge
A tapered 10" strap that runs across the face of the shutter, the favorite on board and batten shutters and anywhere you want the hardware to show.
Suffolk is Lynn Cove's heavier colonial style. Every Suffolk hinge and pintle shares a 1/2" pin, so any Suffolk hinge drops onto any Suffolk pintle, and a matched hinge pair supports up to 75 lb. Pieces are galvanized or 18-8 stainless steel under a black powder coat, and Lynn Cove ships them with stainless wood screws.
Choosing the offset
Offset is the distance from the mounting surface to the center of the pin. The hinge offset plus the pintle offset must clear any trim, brick mould or siding between the shutter and the wall so the shutter closes flat.
- Flat trim or none: a flat or small-offset hinge on a 3/4" pintle is usually enough.
- Brick mould or thick casing: step up to 1 3/4" or 2 1/4", or use a brick-mount pintle.
- Deep reveals or stone: the longest offsets or an adjustable lag pintle.
Not sure? Call 1-888-778-4774 with a photo of your trim and we will help you match hinges and pintles.
Specifications
| Brand | Lynn Cove Foundry & Forge |
|---|---|
| Style | Suffolk (1/2" pin) |
| Pin | 1/2" diameter pin, 1 3/4" tall |
| Strap | 10" long, tapered, 1 3/4" at the barrel |
| Offsets | Flat, 1/2", 3/4", 1 3/4", 2 1/4" |
| Sold as | Pair |
| Material | Galvanized Steel or Stainless Steel |
| Finish | Black powder coat |
| Fits | All Lynn Cove Suffolk hinges and pintles |
All Sizes & Prices
| Item # | Material | Offset | List | Your price |
|---|---|---|---|---|
EHSKR000 | Galvanized Steel | Flat | $58.00 | $43.50 |
EHSKR050 | Galvanized Steel | 1/2" | $59.00 | $44.25 |
EHSKR075 | Galvanized Steel | 3/4" | $60.00 | $45.00 |
EHSKR175 | Galvanized Steel | 1 3/4" | $62.00 | $46.50 |
EHSKR225 | Galvanized Steel | 2 1/4" | $63.00 | $47.25 |
EHSKSS000 | Stainless Steel | Flat | $91.00 | $68.25 |
EHSKSS050 | Stainless Steel | 1/2" | $92.00 | $69.00 |
EHSKSS075 | Stainless Steel | 3/4" | $93.00 | $69.75 |
EHSKSS175 | Stainless Steel | 1 3/4" | $94.00 | $70.50 |
EHSKSS225 | Stainless Steel | 2 1/4" | $97.00 | $72.75 |
Prices are per pair. Shipping is calculated in your cart.
Goes With This
Lynn Cove

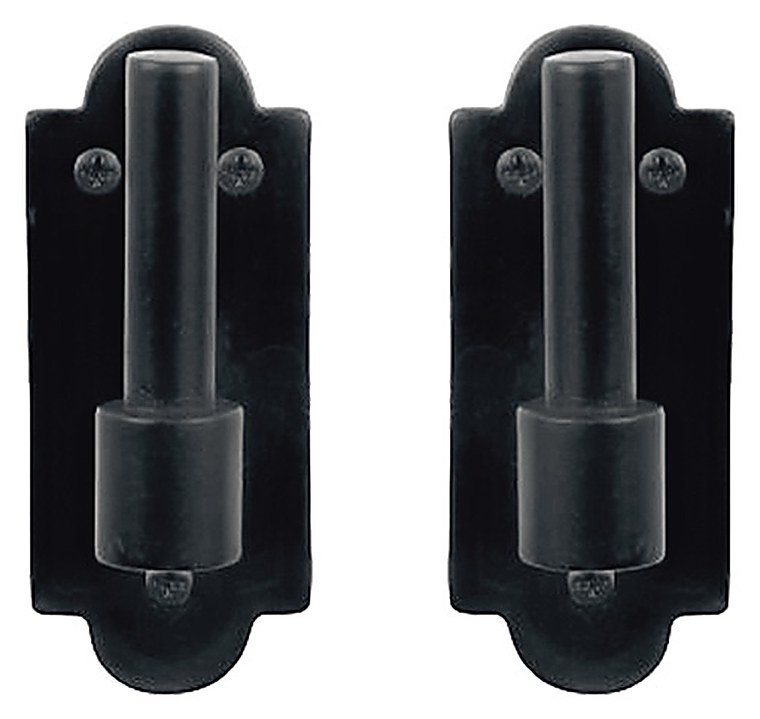

Suffolk Rounded Pintle
1/2" pin · 3/4" to 3 1/4" offsets · galvanized or stainless
Lynn Cove
Suffolk Brick Mount Pintle
1/2" pin · 5" strap mounts to brick mould · 3/4" offset
Lynn Cove
Suffolk Strap Hinge Set
Strap hinges + pintles for 2 shutters · five mounting styles
Questions
Which hinges and pintles does it work with?
Any Lynn Cove Suffolk-style hinge or pintle. The whole Suffolk line shares a 1/2" pin. New York style hardware uses a smaller 3/8" pin and will not fit.
Galvanized or stainless steel?
Lynn Cove recommends galvanized steel for homes at least 20 miles from the coast and stainless steel for coastal homes and storm shutters. Both carry the same black powder coat.
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
Do you offer contractor pricing?
Yes. Contractors and installers ordering hardware for several homes can call 1-888-778-4774 or see our contractor sales page.
