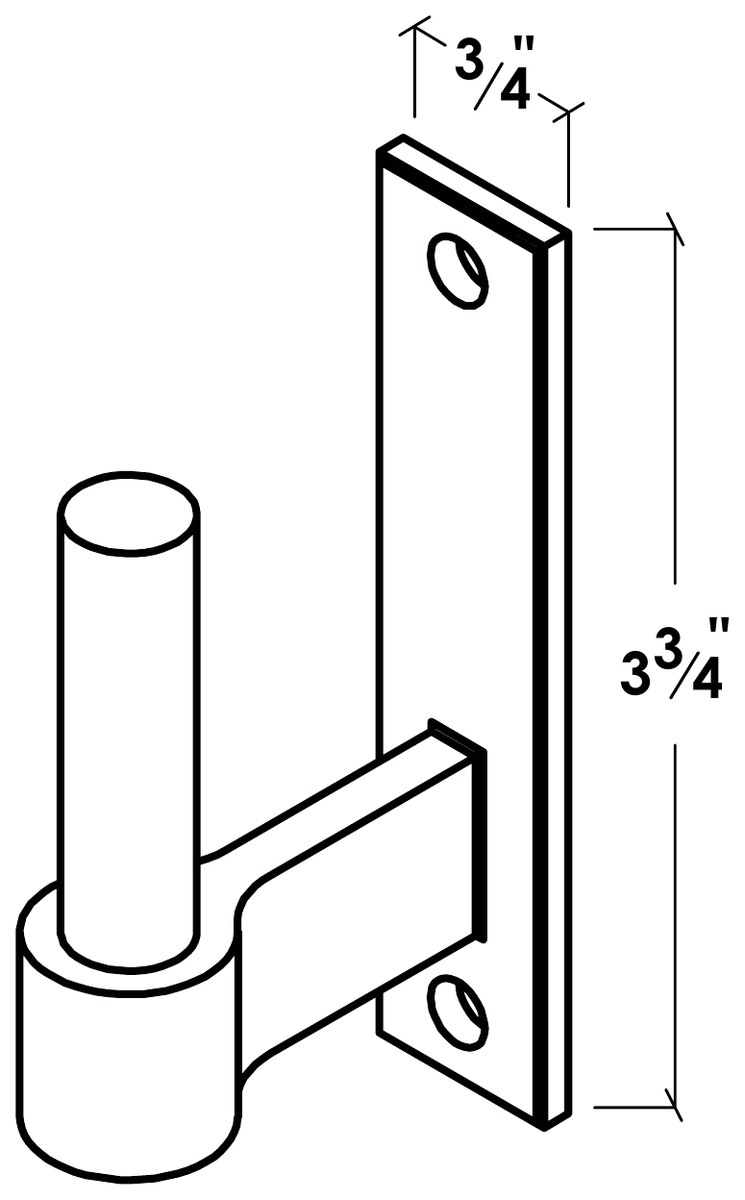

Dimension drawings are in the thumbnails.
About the Suffolk Narrow Plate Pintle
When the casing or brick mould beside your window is too narrow for a standard plate, the narrow plate pintle fits on just 3/4" of trim. It is made in stainless steel in four offsets, so it suits coastal homes and deep reveals alike.
Suffolk is Lynn Cove's heavier colonial style. Every Suffolk hinge and pintle shares a 1/2" pin, so any Suffolk hinge drops onto any Suffolk pintle, and a matched hinge pair supports up to 75 lb. Pieces are galvanized or 18-8 stainless steel under a black powder coat, and Lynn Cove ships them with stainless wood screws.
Choosing the offset
Offset is the distance from the mounting surface to the center of the pin. The hinge offset plus the pintle offset must clear any trim, brick mould or siding between the shutter and the wall so the shutter closes flat.
- Flat trim or none: a flat or small-offset hinge on a 3/4" pintle is usually enough.
- Brick mould or thick casing: step up to 1 3/4" or 2 1/4", or use a brick-mount pintle.
- Deep reveals or stone: the longest offsets or an adjustable lag pintle.
Not sure? Call 1-888-778-4774 with a photo of your trim and we will help you match hinges and pintles.
Specifications
| Brand | Lynn Cove Foundry & Forge |
|---|---|
| Style | Suffolk (1/2" pin) |
| Pin | 1/2" diameter pin, 1 3/4" tall |
| Mounting plate | 3/4" wide x 3 3/4" tall |
| Offsets | 3/4", 1 3/4", 2 1/4", 3 1/4" |
| Material | 18-8 (304) stainless steel |
| Finish | Black powder coat |
| Fits | All Lynn Cove Suffolk hinges and pintles |
| Sold as | 1/2" pin, 3/4" wide plate, sold as a pair |
All Sizes & Prices
| Item # | Offset | List | Your price |
|---|---|---|---|
EHNPSS075 | 3/4" | $59.00 | $44.25 |
EHNPSS175 | 1 3/4" | $63.00 | $47.25 |
EHNPSS225 | 2 1/4" | $64.00 | $48.00 |
EHNPSS325 | 3 1/4" | $65.00 | $48.75 |
Prices are per pair. Shipping is calculated in your cart.
Goes With This
Lynn Cove
Suffolk 'L' Hinge
Fits Suffolk pintles · flat to 2 1/4" offset · 6" leg
Lynn Cove
Suffolk Strap Hinge
10" tapered strap · flat to 2 1/4" offset
Lynn Cove
Suffolk Pintle Shims
1/4" nylon build-out for Rounded, Narrow and Traditional pintles
Questions
Will it fit on 1x2 trim?
Yes. The plate is 3/4" wide, so it fits on the face of narrow stops and 1x2 trim where a rounded or traditional pintle would overhang.
Which hinges and pintles does it work with?
Any Lynn Cove Suffolk-style hinge or pintle. The whole Suffolk line shares a 1/2" pin. New York style hardware uses a smaller 3/8" pin and will not fit.
How fast does it ship?
In-stock hardware usually ships within the next business day. Shipping charges for hardware are shown in your cart before you check out.
Do you offer contractor pricing?
Yes. Contractors and installers ordering hardware for several homes can call 1-888-778-4774 or see our contractor sales page.
